ED06 series - 5-inch dual bearing swivel heavy-duty polyurethane caster

Commodity name： ED06 series - 5-inch dual bearing swivel heavy-duty polyurethane caster
Wheel diameter： 150mm
Installation Method： Flat Base Movable
Brake Method： None Brake
Single Wheel Material： Artificial Rubber
Wheel Width： 30mm
Bearing： Ball Bearing
Surface Treatment of Bracket： Blue Zinc Plating

Scope of application:

Classification:

ED1-5 series medium casters (50-70kg)

E-mail:

master@globe-castor.com

Product inquiry

Other Products

Product Description

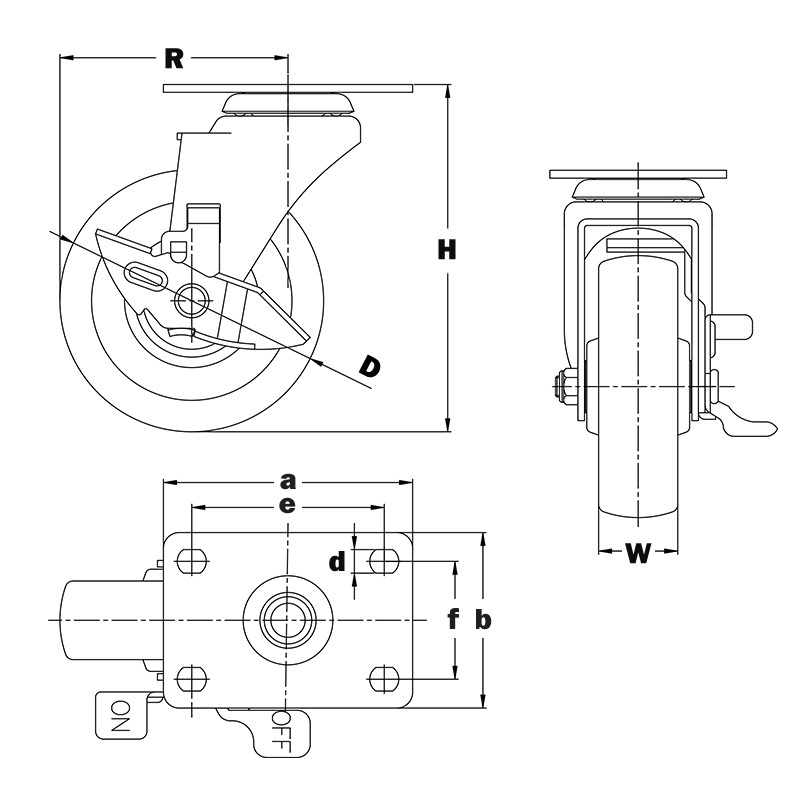

Unit	mm / kg	CADDRAWING
Caster Number	ED06-11-125S-502
Caster Wheel Diameter (D)	125 mm
Caster Wheel Width (W)	30 mm
Caster Load Capacity	120 kg
Caster Material	High-strength artificial rubber
Caster Bearing	Ball bearing
Caster Installation Height (H)	158 mm
Caster Swivel Radius (R)	103 mm
Caster Baseplate Specifications (a×b)	94×67 mm
Caster Hole Spacing (e×f)	73×45 mm
Caster Hole Diameter (d)	9 mm
Caster Weight	0.70 kg
Quantity per Carton	20 pieces

Please select suitable materials according to the ground environment or contact us for advice

Material Quality Presentation
Name	Nylon	Super Polyurethane	High-Strength Polyurethane	High-Strength Artificial Rubber	Steel	High-Temperature Wheel	Rubber
Load Capacity (kg)	10~2000	10~1500	10~1500	10-310	10~2000	40~600	40~400
Applicable Temperature (°C)	-45~130	-45~90	-45~90	-45~60	-45~500	-35~230	-45~90
Wheel Hardness	-	95(±5)A	95(±5)A	70(±5) A	-	-	70(±5) A
Rotation Flexibility	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■
Rotation Quietness	General ■■■□□	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Poor ■■□□□	Good ■■■■□	Excellent ■■■■■
Floor Protection	General ■■■□□	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Poor ■■□□□	Good ■■■■□	General ■■■□□
No Wheel Marks	None	None	None	None	None	None	None
Impact Resistance	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Good ■■■■□	Excellent ■■■■■	Excellent ■■■■■
Abrasion Resistance	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■
Waterproof Performance	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Poor ■■□□□	Excellent ■■■■■	Excellent ■■■■■
Chemical Resistance	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Good ■■■■□	Excellent ■■■■■	Poor ■■□□□
Recommended Ground Surface	Uneven ground or ground with many iron filings	Uneven ground or ground with many iron filings	Indoor and outdoor, flat ground suitable for handling needs	Hotels, medical equipment, floors, wooden floors, tiles, etc., where low noise is required	Uneven ground or ground with many iron filings	For use in high-temperature environments	Hotels, medical equipment, floors, wooden floors, tiles, etc., where low noise is required
