ED06 series - 3-inch dual bearing screw nylon caster

Scope of application:

Classification:

E-mail:

Product Description

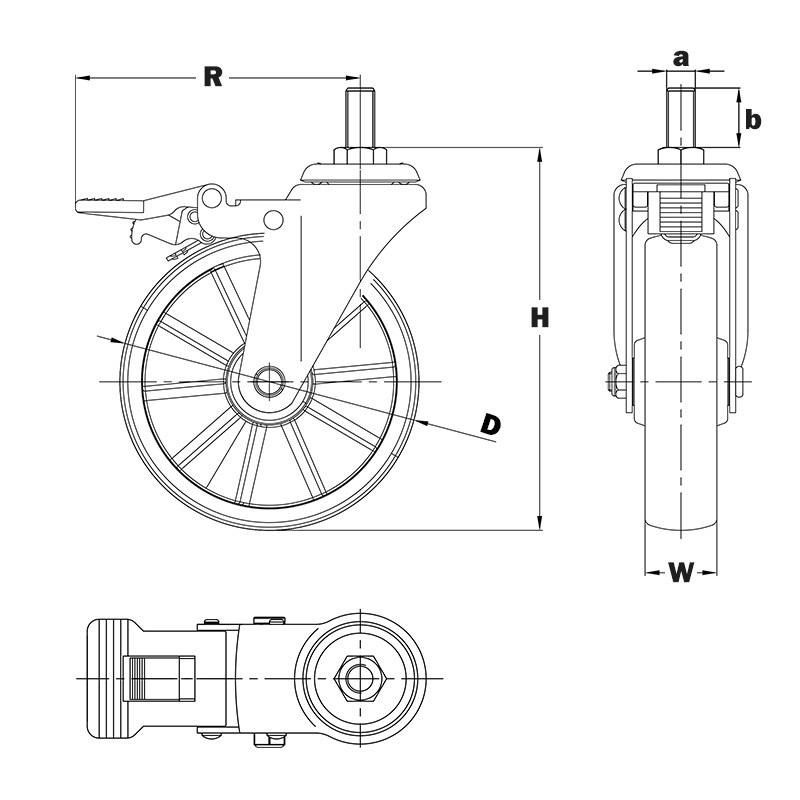

Unit	mm / kg	CADDRAWING
Caster Number	ED06-11-075M-210
Caster Wheel Diameter (D)	75 mm
Caster Wheel Width (W)	30 mm
Caster Load Capacity	80 kg
Caster Wheel Material	Chaoda Wheel
Caster Bearing	Ball Bearing
Caster Installation Height (H)	110 mm
Caster Swivel Radius (R)	75 mm
Caster Screw Specification (a×b)	12×25 mm
Caster Net Weight	/
Quantity per Carton	40 pieces

Please select suitable materials according to the ground environment or contact us for advice

Material Quality Presentation
Name	Nylon	Super Polyurethane	High-Strength Polyurethane	High-Strength Artificial Rubber	Steel	High-Temperature Wheel	Rubber
Load Capacity (kg)	10~2000	10~1500	10~1500	10-310	10~2000	40~600	40~400
Applicable Temperature (°C)	-45~130	-45~90	-45~90	-45~60	-45~500	-35~230	-45~90
Wheel Hardness	-	95(±5)A	95(±5)A	70(±5) A	-	-	70(±5) A
Rotation Flexibility	Excellent	Excellent	Excellent	Excellent	Excellent	Excellent	Excellent
Rotation Quietness	General	Excellent	Excellent	Excellent	Poor ■■□□□	Good	Excellent
Floor Protection	General	Excellent	Excellent	Excellent	Poor ■■□□□	Good	General
No Wheel Marks	None	None	None	None	None	None	None
Impact Resistance	Excellent	Excellent	Excellent	Excellent	Good	Excellent	Excellent
Abrasion Resistance	Excellent	Excellent	Excellent	Excellent	Excellent	Excellent	Excellent
Waterproof Performance	Excellent	Excellent	Excellent	Excellent	Poor	Excellent	Excellent
Chemical Resistance	Excellent	Excellent	Excellent	Excellent	Good	Excellent	Poor
Recommended Ground Surface	Uneven ground or ground with many iron filings	Uneven ground or ground with many iron filings	Indoor and outdoor, flat ground that can meet the needs of moving Demand	Hotels, medical equipment, floors, wooden floors, tiles, etc., where low noise is required	Uneven ground or ground with many iron filings	For use in high-temperature environments	Hotels, medical equipment, floors, wooden floors, tiles, etc., where low noise is required
