EG07 series - 6-inch dual bearing swivel metal dual brake caster

Commodity name： EG07 series - 6-inch dual bearing swivel metal dual brake caster
Wheel diameter： 150mm
Installation Method： Flat Base Movable
Brake Method： Metal Double Brake
Single Wheel Material： Artificial Rubber
Wheel Width： 35mm
Bearing： Ball Bearing
Surface Treatment of Bracket： Blue Zinc Plating

Scope of application:

Classification:

EG1-8 series heavy-duty casters (150-350kg)

E-mail:

master@globe-castor.com

Product inquiry

Other Products

Product Description

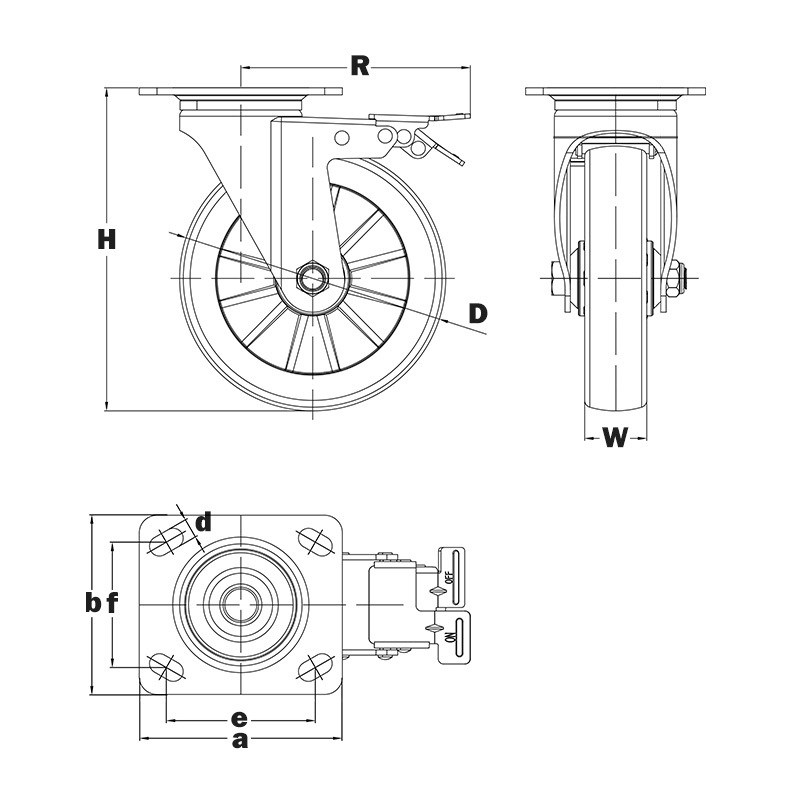

Unit	mm / kg	CADDRAWING
Caster Number	EG07-11-150SB-512
Caster Wheel Diameter (D)	150 mm
Caster Wheel Width (W)	35 mm
Caster Load Capacity	280 kg
Caster Material	Super Smooth Wheel
Caster Bearing	Ball Bearing
Caster Installation Height (H)	183 mm
Caster Dual Brake Turning Radius (R)	135 mm
Caster Baseplate Specifications (axb)	114×100 mm
Caster Hole Distance (exf)	84×71 mm
Caster Hole Diameter (d)	11 mm
Caster Weight	1.58 kg
Quantity per Carton	8 pieces

Please select suitable materials according to the ground environment or contact us for advice

Material Quality Show
Name	Nylon	Super Polyurethane	High Strength Polyurethane	High Strength Artificial Rubber	Steel	High Temperature Wheel	Rubber
Load Capacity (kg)	10~2000	10~1500	10~1500	10-310	10~2000	40~600	40~400
Applicable Temperature (°C)	-45~130	-45~90	-45~90	-45~60	-45~500	-35~230	-45~90
Wheel Hardness	-	95(±5)A	95(±5)A	70(±5) A	-	-	70(±5) A
Rotation Flexibility	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■
Rotation Quietness	General ■■■□□	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Poor ■■□□□	Good ■■■■□	Excellent ■■■■■
Floor Protection	General ■■■□□	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Poor ■■□□□	Good ■■■■□	General ■■■□□
No Wheel Marks	None	None	None	None	None	None	None
Impact Resistance	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Good ■■■■□	Excellent ■■■■■	Excellent ■■■■■
Abrasion Resistance	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■
Waterproof Performance	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Poor ■■□□□	Excellent ■■■■■	Excellent ■■■■■
Chemical Resistance	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Good ■■■■□	Excellent ■■■■■	Poor ■■□□□
Recommended Ground	Uneven ground or ground with many iron filings	Uneven ground or ground with many iron filings	Indoor and outdoor, flat ground suitable for handling Needs	Hotels, medical equipment, floors, wooden floors, tiles, etc. requiring low noise	Uneven ground or ground with many iron filings	Use in high temperature environments	Hotels, medical equipment, floors, wooden floors, tiles, etc. requiring low noise
