EK06 series - 6x3 four-bearing fixed super tough nylon wheel

Commodity name： EK06 series - 6x3 four-bearing fixed super tough nylon wheel
Wheel diameter： 150mm
Installation Method： Flat Base Fixed
Brake Method： None Brake
Single Wheel Material： Nylon
Wheel Width：
Bearing： Ball Bearing
Surface Treatment of Bracket： Baked Paint

Scope of application:

Classification:

EK1-7 series heavy-duty casters (300-2000kg)

E-mail:

master@globe-castor.com

Product inquiry

Other Products

Product Description

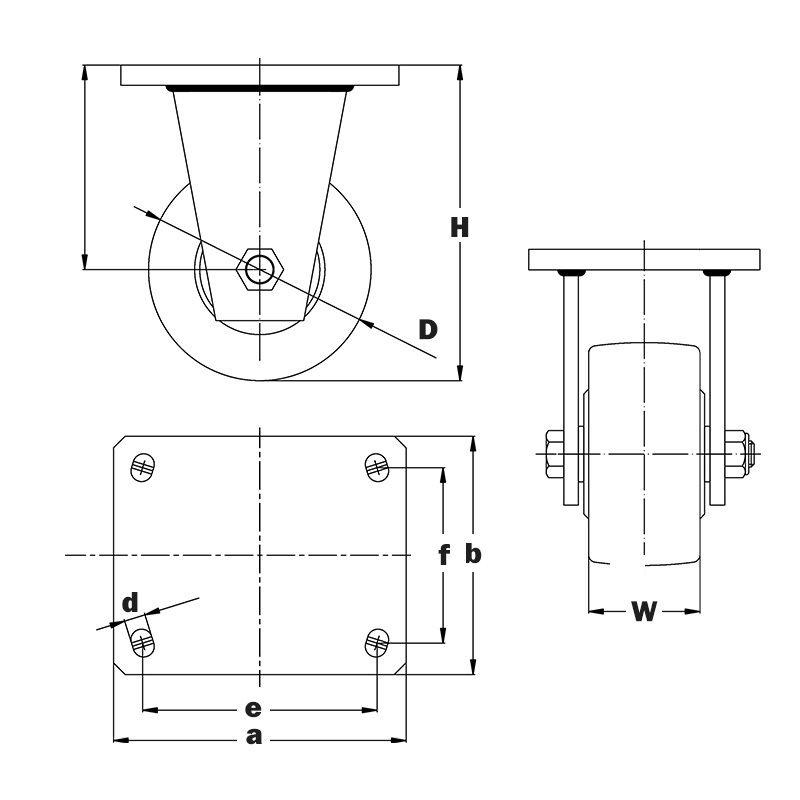

Unit	mm / kg	CADDRAWING
Number	EK06-17-150R-107
Wheel Diameter (D)	150 mm
Wheel Width (W)	76 mm
Load Capacity	5000 kg
Single Wheel Material	High-tensile Nylon
Bearing	Ball Bearing
Installation Height (H)	216 mm
Base Plate Size (a×b)	200×163 mm
Hole Distance (e×f)	160×120 mm
Hole Diameter (d)	15 mm
Single Wheel Weight	14.05 kg
Quantity per Carton	1 pc

Please select suitable materials according to the ground environment or contact us for advice

Material Quality Presentation
Name	Nylon	Super Polyurethane	High-strength Polyurethane	High-strength Artificial Rubber	Steel	High-temperature Resistant Wheel	Rubber
Load Capacity (kg)	10~2000	10~1500	10~1500	10-310	10~2000	40~600	40~400
Applicable Temperature (°C)	-45~130	-45~90	-45~90	-45~60	-45~500	-35~230	-45~90
Wheel Hardness	-	95(±5)A	95(±5)A	70(±5) A	-	-	70(±5) A
Rotation Flexibility	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■
Rotation Quietness	General ■■■□□	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Poor ■■□□□	Good ■■■■□	Excellent ■■■■■
Floor Protection	General ■■■□□	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Poor ■■□□□	Good ■■■■□	General ■■■□□
No Wheel Marks	None	None	None	None	None	None	None
Impact Resistance	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Good ■■■■□	Excellent ■■■■■	Excellent ■■■■■
Abrasion Resistance	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■
Waterproof Performance	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Poor ■■□□□	Excellent ■■■■■	Excellent ■■■■■
Chemical Resistance	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Good ■■■■□	Excellent ■■■■■	Poor ■■□□□
Recommended Ground Surface	Uneven ground or ground with many iron filings	Uneven ground or ground with many iron filings	Indoor and outdoor, flat ground suitable for handling needs	Hotels, medical equipment, floors, wooden floors, tiles and other surfaces requiring low noise	Uneven ground or ground with many iron filings	For use in high-temperature environments	Hotels, medical equipment, floors, wooden floors, tiles and other surfaces requiring low noise
