EK08 series - 200×75 double bearing swing core polyurethane wheel

Commodity name： EK08 series - 200×75 double bearing swing core polyurethane wheel
Wheel diameter： 200mm
Installation Method： Flat Base Movable
Brake Method： None Brake
Single Wheel Material： Polyurethane
Wheel Width：
Bearing： Ball Bearing
Surface Treatment of Bracket： Baked Paint

Scope of application:

Classification:

EK1-7 series heavy-duty casters (300-2000kg)

E-mail:

master@globe-castor.com

Product inquiry

Other Products

Product Description

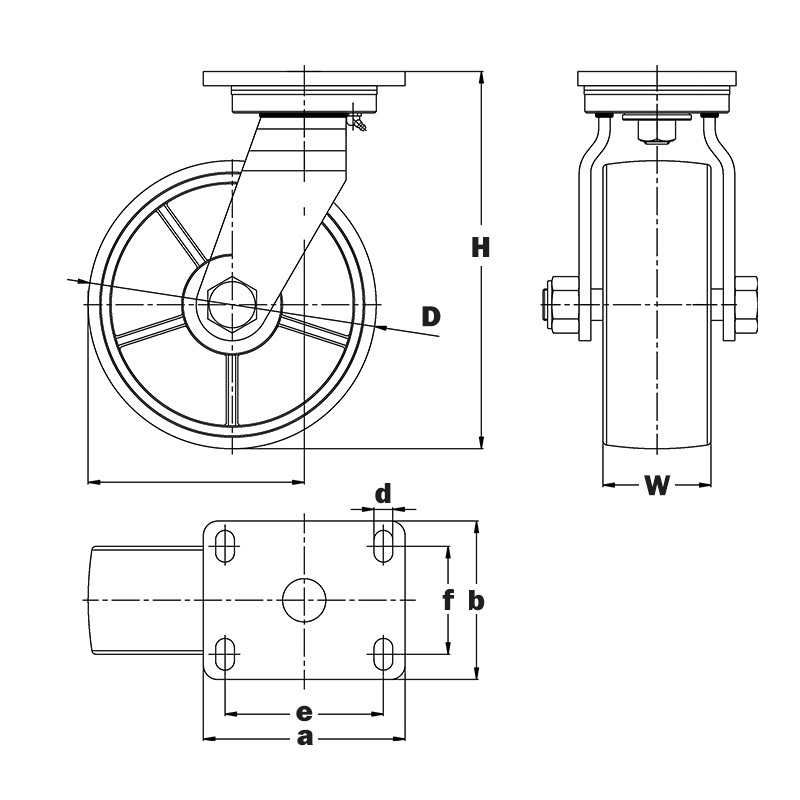

Unit	mm / kg	CADDRAWING
Number	EK08-17-200S-402
Wheel Diameter (D)	200 mm
Wheel Width (W)	75 mm
Load Capacity	2000 kg
Single Wheel Material	Iron Core Polyurethane
Bearing	Ball Bearing
Installation Height (H)	262 mm
Swing Radius (R)	154 mm
Base Plate Specifications (a×b)	140×110 mm
Hole Distance (e×f)	110×75 mm
Hole Diameter (d)	13 mm
Single Wheel Weight	10.24 kg
Quantity per Carton	3 pieces

Please select suitable materials according to the ground environment or contact us for advice

Material Quality Presentation
Name	Nylon	Super Polyurethane	High-strength Polyurethane	High-strength Artificial Rubber	Steel	High-temperature Resistant Wheel	Rubber
Load Capacity (kg)	10~2000	10~1500	10~1500	10-310	10~2000	40~600	40~400
Applicable Temperature (°C)	-45~130	-45~90	-45~90	-45~60	-45~500	-35~230	-45~90
Wheel Hardness	-	95(±5)A	95(±5)A	70(±5) A	-	-	70(±5) A
Rotation Flexibility	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■
Rotation Quietness	General ■■■□□	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Poor ■■□□□	Good ■■■■□	Excellent ■■■■■
Floor Protection	General ■■■□□	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Poor ■■□□□	Good ■■■■□	General ■■■□□
No Wheel Marks	None	None	None	None	None	None	None
Impact Resistance	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Good ■■■■□	Excellent ■■■■■	Excellent ■■■■■
Abrasion Resistance	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■
Water Resistance	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Poor ■■□□□	Excellent ■■■■■	Excellent ■■■■■
Chemical Resistance	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Excellent ■■■■■	Good ■■■■□	Excellent ■■■■■	Poor ■■□□□
Recommended Ground Surface	Uneven ground or ground with many iron filings	Uneven ground or ground with many iron filings	Indoor and outdoor, flat ground suitable for handling Needs	Hotels, medical equipment, floors, wooden floors, tiles, etc., where low noise is required	Uneven ground or ground with many iron filings	For use in high-temperature environments	Hotels, medical equipment, floors, wooden floors, tiles, etc., where low noise is required
