EM02 series - 200×2×100 double bearing fixed ultra-tough nylon wheel

  • Commodity name： EM02 series - 200×2×100 double bearing fixed ultra-tough nylon wheel
  • Wheel diameter： 200mm
  • Installation Method： Flat Base Fixed
  • Brake Method： None Brake
  • Single Wheel Material： Nylon
  • Wheel Width：
  • Bearing： Ball Bearing
  • Surface Treatment of Bracket： Baked Paint

Scope of application:

Classification:

EM1-2 series casters (10000-15000kg)

E-mail:

master@globe-castor.com

Product inquiry
Other Products

Product Description

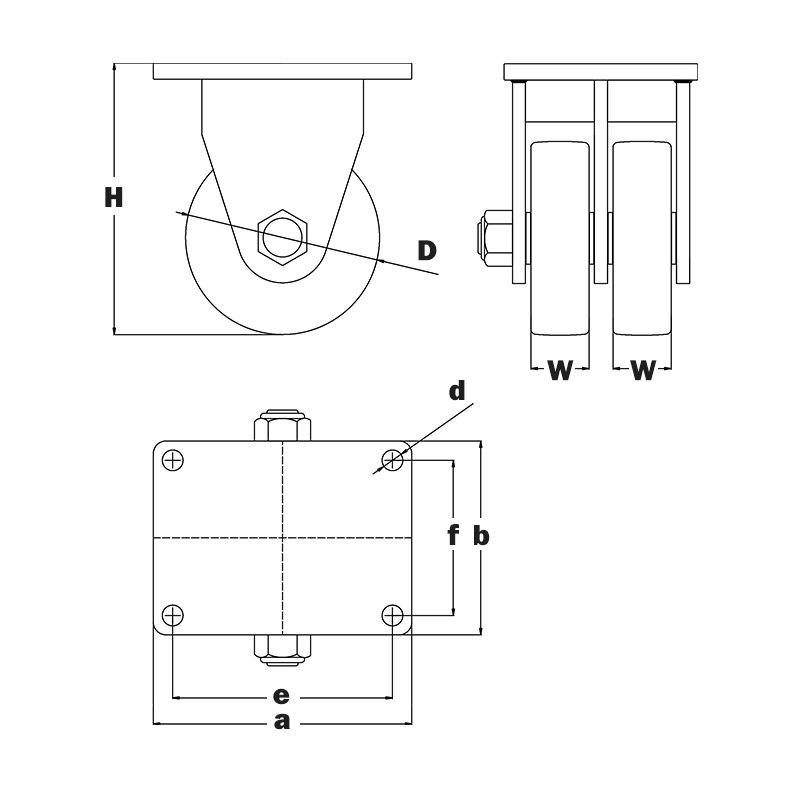

Unit mm / kg CADDRAWING
Number EM02-18-300R-107
Wheel Diameter (D) 300 mm
Wheel Width (W) 100 mm
Load Capacity 15000 kg
Single Wheel Material High-strength Nylon
Bearing Ball Bearing
Installation Height (H) 420 mm
Base Plate Specifications (a×b) 400×300 mm
Hole Distance (e×f) 340×240 mm
Hole Diameter (d) 33 mm
Single Wheel Weight /
Quantity per Carton /

Please select suitable materials according to the ground environment or contact us for advice

Material Material Presentation
Name Nylon Super Polyurethane High Strength Polyurethane High Strength Artificial Rubber Steel High Temperature Resistant Wheel Rubber
Load Capacity (kg) 10~2000 10~1500 10~1500 10-310 10~2000 40~600 40~400
Applicable Temperature (°C) -45~130 -45~90 -45~90 -45~60 -45~500 -35~230 -45~90
Wheel Hardness - 95(±5)A 95(±5)A 70(±5) A -- 70(±5) A
Rotation Flexibility Excellent ■■■■■ Excellent ■■■■■ Excellent ■■■■■ Excellent ■■■■■ Excellent ■■■■■ Excellent ■■■■■ Excellent ■■■■■
Rotation Quietness General ■■■□□ Excellent ■■■■■ Excellent ■■■■■ Excellent ■■■■■ Poor ■■□□□ Good ■■■■□ Excellent ■■■■■
Floor Protection General ■■■□□ Excellent ■■■■■ Excellent ■■■■■ Excellent ■■■■■ Poor ■■□□□ Good ■■■■□ General ■■■□□
No Wheel Marks None None None None None None None
Impact Resistance Excellent ■■■■■ Excellent ■■■■■ Excellent ■■■■■ Excellent ■■■■■ Good ■■■■□ Excellent ■■■■■ Excellent ■■■■■
Abrasion Resistance Excellent ■■■■■ Excellent ■■■■■ Excellent ■■■■■ Excellent ■■■■■ Excellent ■■■■■ Excellent ■■■■■ Excellent ■■■■■
Waterproof Performance Excellent ■■■■■ Excellent ■■■■■ Excellent ■■■■■ Excellent ■■■■■ Poor ■■□□□ Excellent ■■■■■ Excellent ■■■■■
Chemical Resistance Excellent ■■■■■ Excellent ■■■■■ Excellent ■■■■■ Excellent ■■■■■ Good ■■■■□ Excellent ■■■■■ Poor ■■□□□
Recommended Ground Surface Uneven ground or ground with many iron filings Uneven ground or ground with many iron filings Indoor and outdoor, flat ground that meets handling needs Hotels, medical equipment, floors, wooden floors, tiles and other surfaces that require low noise Uneven ground or ground with many iron filings For use in high temperature environments Hotels, medical equipment, floors, wooden floors, tiles and other surfaces that require low noise

Key words:

EM02 series - 200×2×100 double bearing fixed ultra-tough nylon wheel
